Forced Action Mixer FAM-120
Know the Product

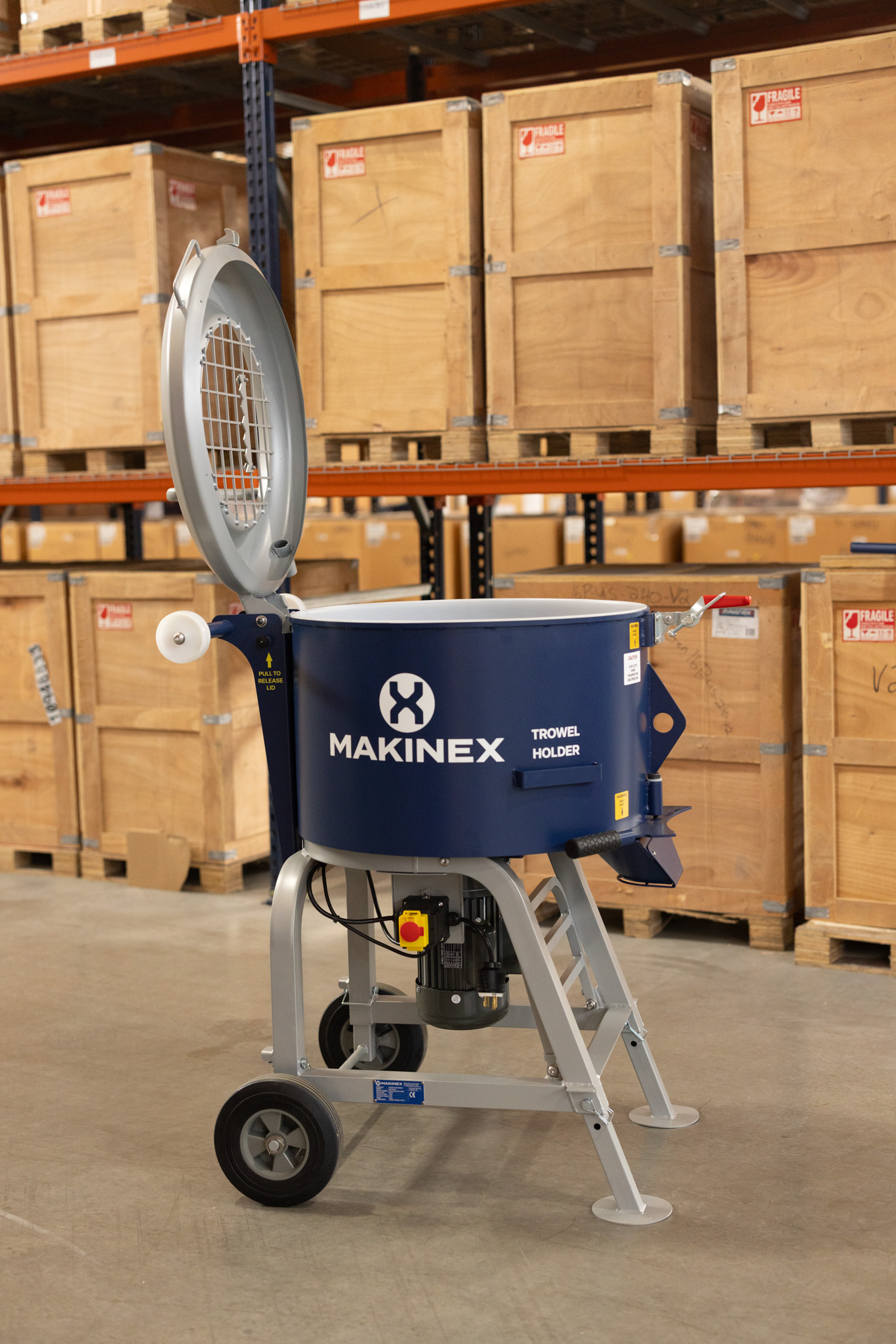

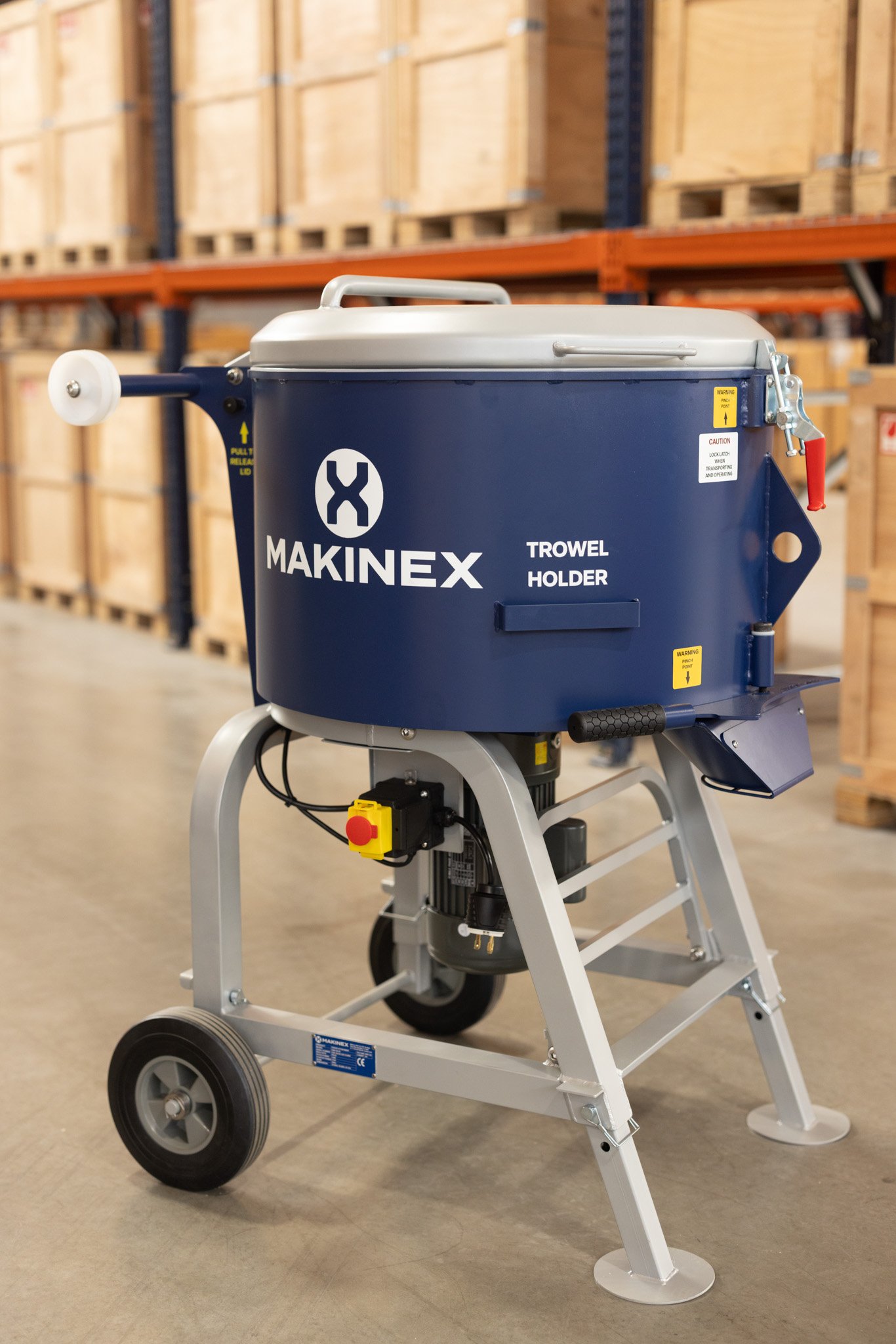

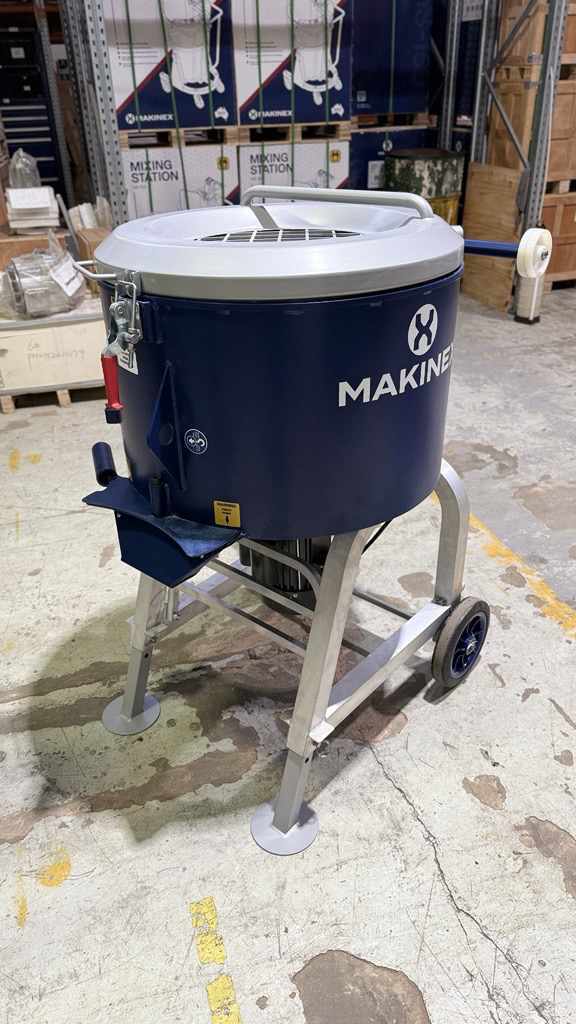

Forced Action Mixer FAM-120
Engineered for high-viscosity materials, the Makinex Forced Action Mixer delivers consistent, uniform mix quality on every batch. Built with the reliability Makinex is known for, its sealed AC geared motor, concave lid geometry and reinforced frame ensure controlled, repeatable mixing while reducing airborne dust and material loss. The FAM-120 is designed for harsh jobsite and rental environments, with durable components and rapid cleaning features that reduce downtime.
Features and Benefits
Challenges on the Job
Replaceable Drum Liner
• Extends drum life and reduces wear
• Minimises cleaning time between batches
• Supports cleaner operation and consistent mix quality
Concave, Inverted Anti-Spill Lid
• Reduces spillage, throw-off and dust
• Improves site cleanliness and operator visibility
• Helps maintain accurate mix ratios
Integrated Vacuum Port for Dust Extraction
• Enables low-dust operation for safer sites
• Protects workers from hazardous silica and epoxy dust
• Supports compliance with modern safety standards
Adjustable Stabilising Legs
• Stable on uneven terrain
• Reduces operator strain through improved ergonomics
• Enhances control when discharging into wheelbarrows or containers
Solution Benefits
Engineered for Reliability
Built with high-performance, sealed components to withstand continuous use and harsh conditions.
Designed for Operator Safety
Cleaner operation, reduced dust exposure, and ergonomic controls protect workers on busy job sites.
Fast Turnaround Between Batches
Reduce downtime and increase throughput with a drum system designed for rapid cleaning and reloading.
Consistent Mix Accuracy
Forced mixing action ensures uniformity — essential for screeds, epoxies and high-performance materials.
Specifications
| Forced Action Mixer | Value |
| Forced Action Mixer Product Code | FAM-120-US |
| Forced Action Mixer Line Product Code | FAM-027 |
| Rated Continuous Output | 1100W |
| Max Output | TBA |
| Input Voltage | 110V |
| Input Current | 10A |
| Frequency | 60Hz |
| Weight | 265lbs |
| Dimensions (min) | 29.9 x 38.6 x 47.6 (W x D x H) in |
| Dimensions (max) | 29.9 x 38.6 x 54.1 (W x D x H) in |
| Output RPM | 30 |
| Mixing Capacity | 31.7gal |
| Motor Ingress Protection | 44 |
| Terminal Box Ingress Protection | 54 |
Safety Compliance
Safety compliance:
- Compliant with relevant CE and IEC electrical safety standards
- Designed with dust-control capability to support compliance on modern construction sites
- Integrated safety cut-out and thermal overload protection
- UKCA and CE compliance markings (confirm based on final market release)
