Sierra Light Tower 16ft
The Makinex Sierra Light Tower is a compact, high-performance LED lighting solution designed for rapid deployment. Standing at 5 meters or 16.4 feet when fully extended, it delivers up to 112,000 lumens, effectively illuminating areas up to 2,200 square meters or 23.6k square feet.
Know the Product
Sierra Light Tower 16ft

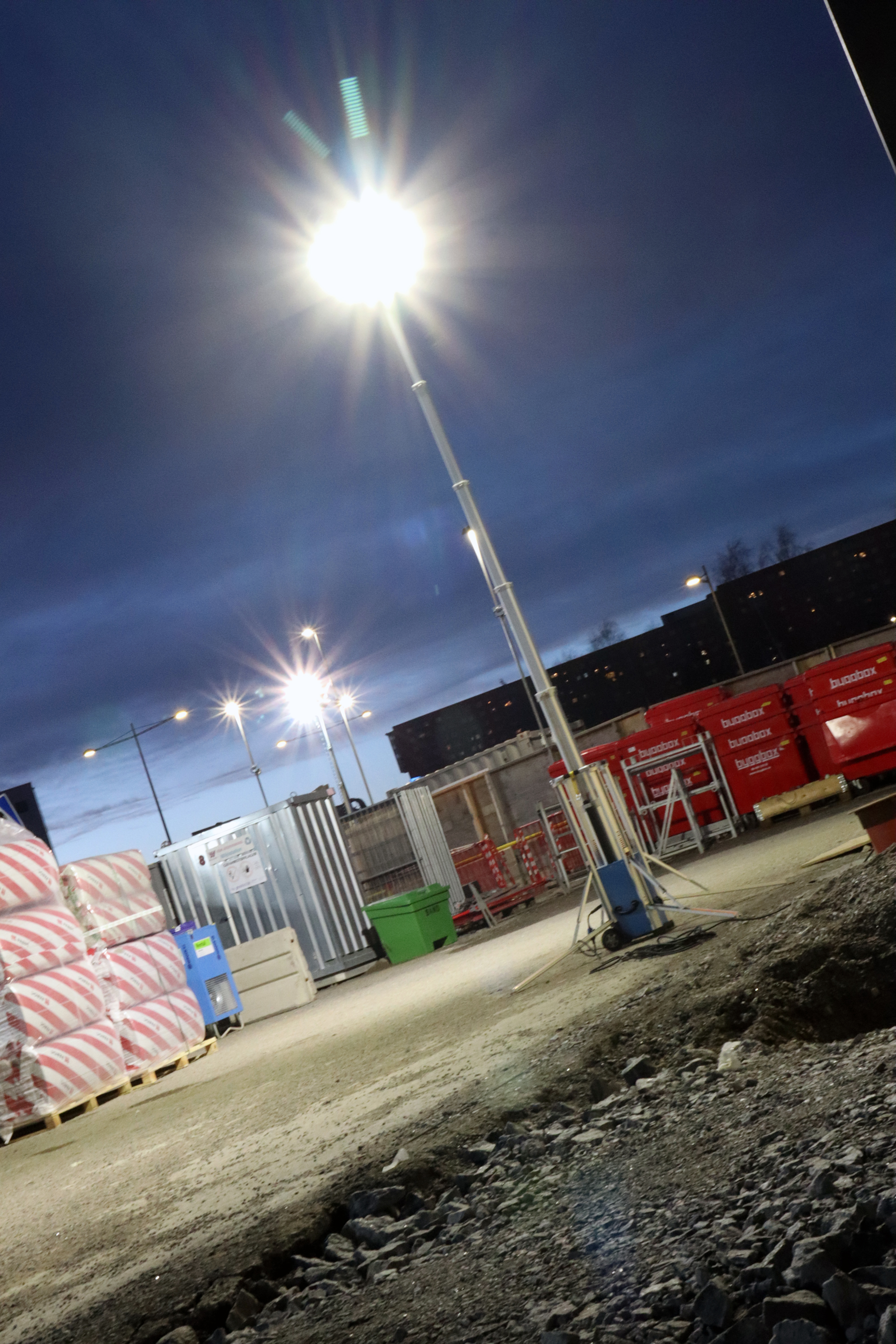

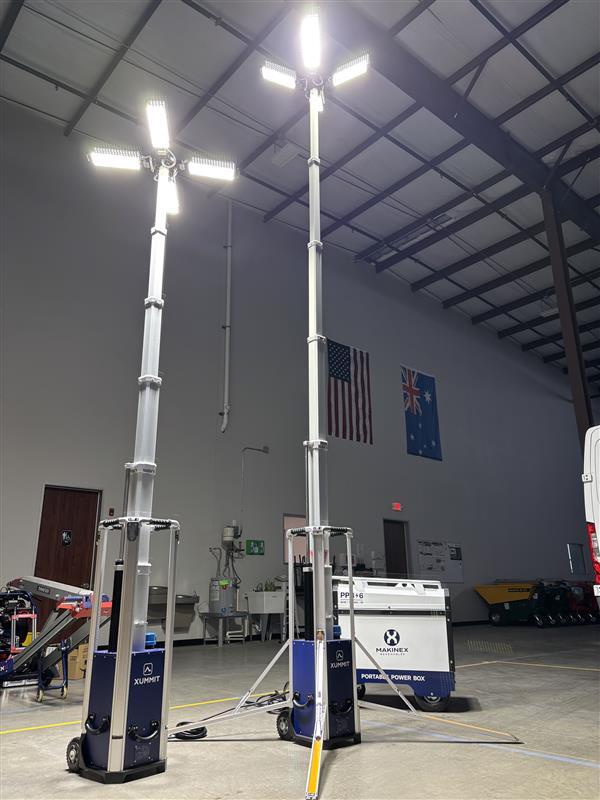

The Makinex Sierra Light Tower is a compact, high-performance LED lighting solution designed for rapid deployment. Standing at 5 meters or 16.4 feet when fully extended, it delivers up to 112,000 lumens, effectively illuminating areas up to 2,200 square meters or 23.6k square feet. Weighing only 49 kg or 108 pounds and featuring a transport height of 1.2 meters or 3.9 feet, the Sierra is portable and can fit into standard vehicles, allowing for single-person setup. Its 360° fully rotational light heads provide versatile lighting configurations, while the electric mast ensures quick and effortless elevation. Engineered for durability, the Sierra operates silently and is built to withstand harsh environments, making it ideal for construction sites, events, and emergency situations.
Features and Benefits
Challenges on the Job
-
112,000 lumen LED output – ultra-bright illumination.
-
Covers 2,200 m² / 23,680 ft² – wide lighting reach.
-
360° rotational light heads – flexible and targeted coverage.
-

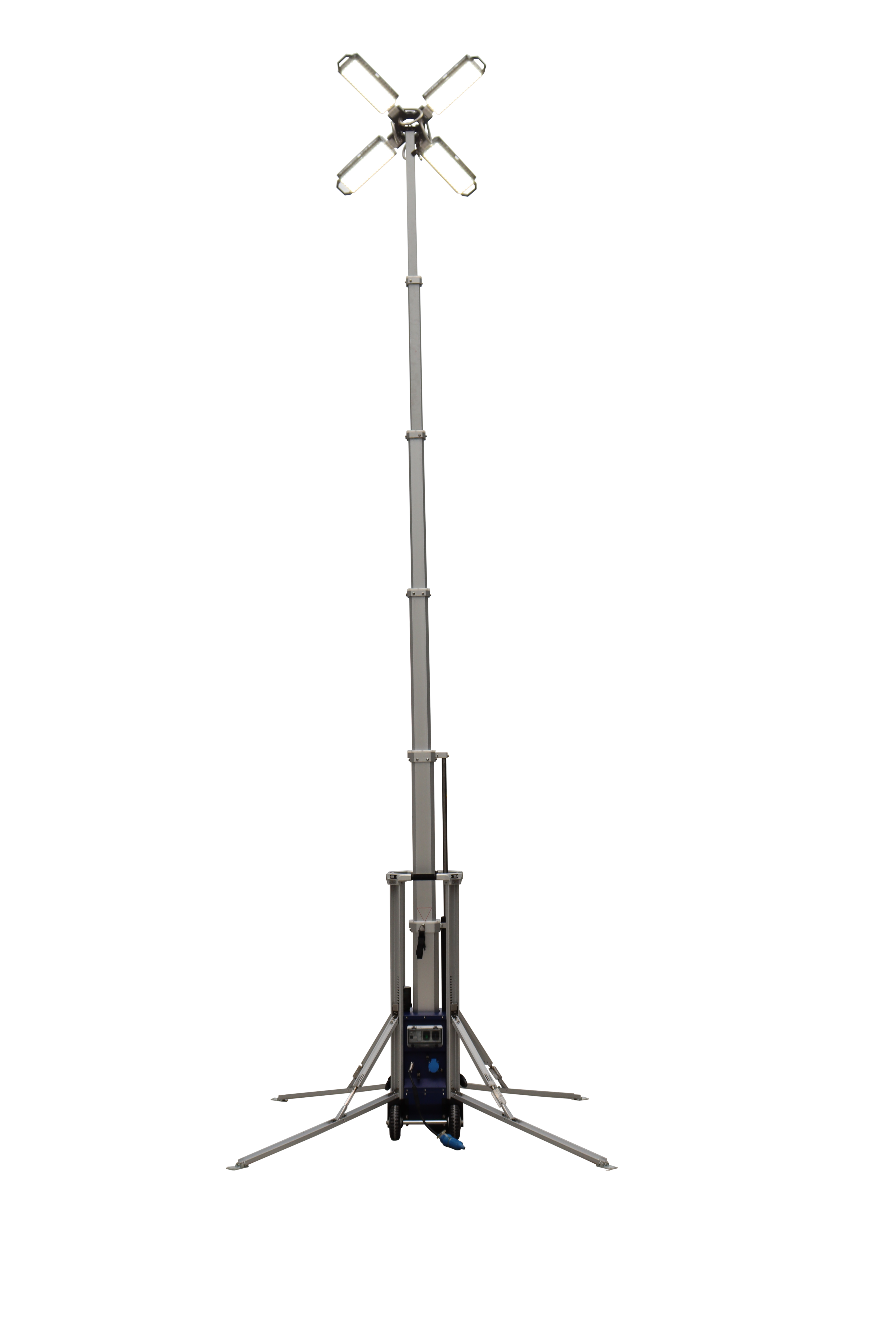

Electric mast with 5m (16.4 ft) extension – quick, effortless height adjustment.
-
Compact and lightweight (49kg / 108 lbs) – easy to transport and maneuver.
-

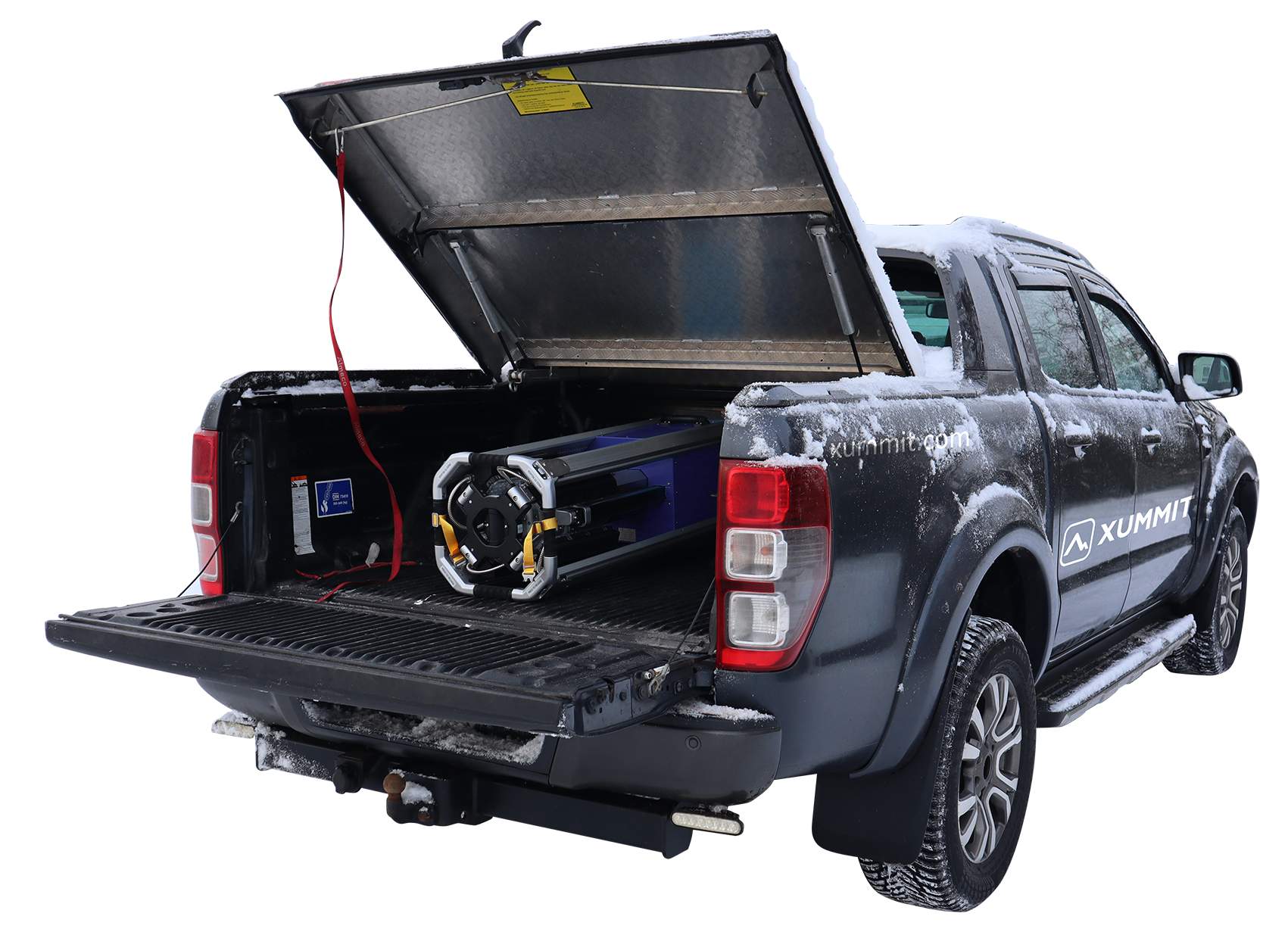

Transport height 1.2m (3.9 ft) – fits into standard vehicles.
-
Silent, emission-free operation – environmentally friendly and suitable for noise-restricted zones.
-
Single-person setup – fast, hassle-free deployment.
-
Durable build (IP65 lighting / IP54 chassis, IK08 impact rated) – weather and impact resistant.
-
Puncture-proof wheels & stabilizer system – stable in rough terrain.
-
Over-voltage, over-temp, and short-circuit protection – safe and reliable.
-
Service life >100,000 hours (L80 B50 LED) – long-lasting performance.
-
Dimmable light control – adaptable to different site requirements.
Solution Benefits
-
Maximum visibility – ensures safety and productivity on worksites, events, and emergencies.
-
Adaptable lighting – adjust coverage exactly where needed, reducing shadows and blind spots.
-
Fast deployment – save time and labor costs with single-person setup.
-
Highly portable – easy to move, store, and transport in regular vehicles.
-
Quiet and clean power – ideal for urban areas, residential projects, or eco-sensitive environments.
-
Built tough – withstands harsh weather, rough sites, and long operating hours.
-
Lower operational costs – efficient LEDs reduce energy usage and maintenance.
-
Versatile applications – construction, events, roadworks, mining, emergency response, and security.
Specifications
Model |
Electrical |
||
Series |
Sierra |
IK class |
IK08 |
Model No. |
PLT-800 |
IP class |
IP65 (lighting) / IP54 (chassi) |
Performance |
Noise Emissions |
<5dB(A) |
|
Illuminated Surface |
2200 m2 /23 681 ft2 |
Physical |
|
System Power |
800W |
Fully extended height |
5.1 meters/ 16.7ft |
Luminous Flux |
112,000 lm |
Elevation system |
Electric |
Lumen/W |
140 |
Mast Rotation |
340 |
Beam Profile |
60 |
Mobility |
By hand/ Crane/ |
Color Temperature (CCT) |
5000K |
Dimensions (min.) |
358 x 427 x 1200mm |
Electrical |
Dimensions (max.) |
1640 x 1640 x 5100mm |
|
Operating Voltage |
100-305VAC/50Hz-60HZ |
Weight PLT |
49kg/ 108lb |
Power Factor |
>0.92 |
Wind Resistance |
30 m/s / 67.1mph |
Electrical Class |
Class I |
Housing Finish |
UV stabilised powder coating |
Protection |
Over Voltage / Over Temp. / Short Circuit |
Approvals |
|
Dimmable |
Yes |
Certifications |
CE, ETL |
Input Plug |
CEE 230V/ NEMA/ Schuko |
Service life L80 B50 (LED) |
>100,000 h |
Environmental |
|||
Ambient Operating Temp. range |
-30ºC to +45ºC -22ºF to 113ºF |
||
Storage Temp. Range |
-40ºC to +80ºC -40ºF to 176ºF |
