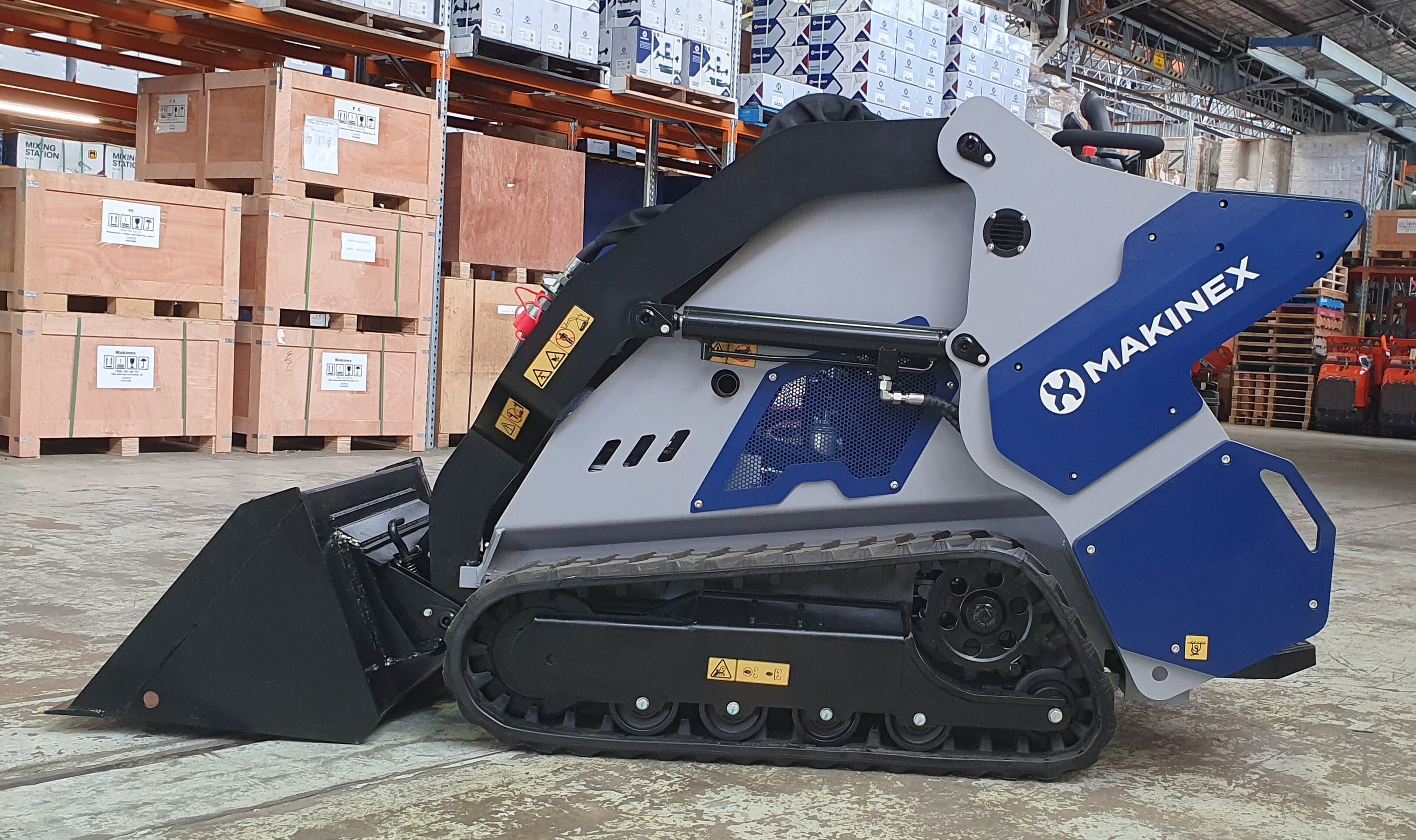

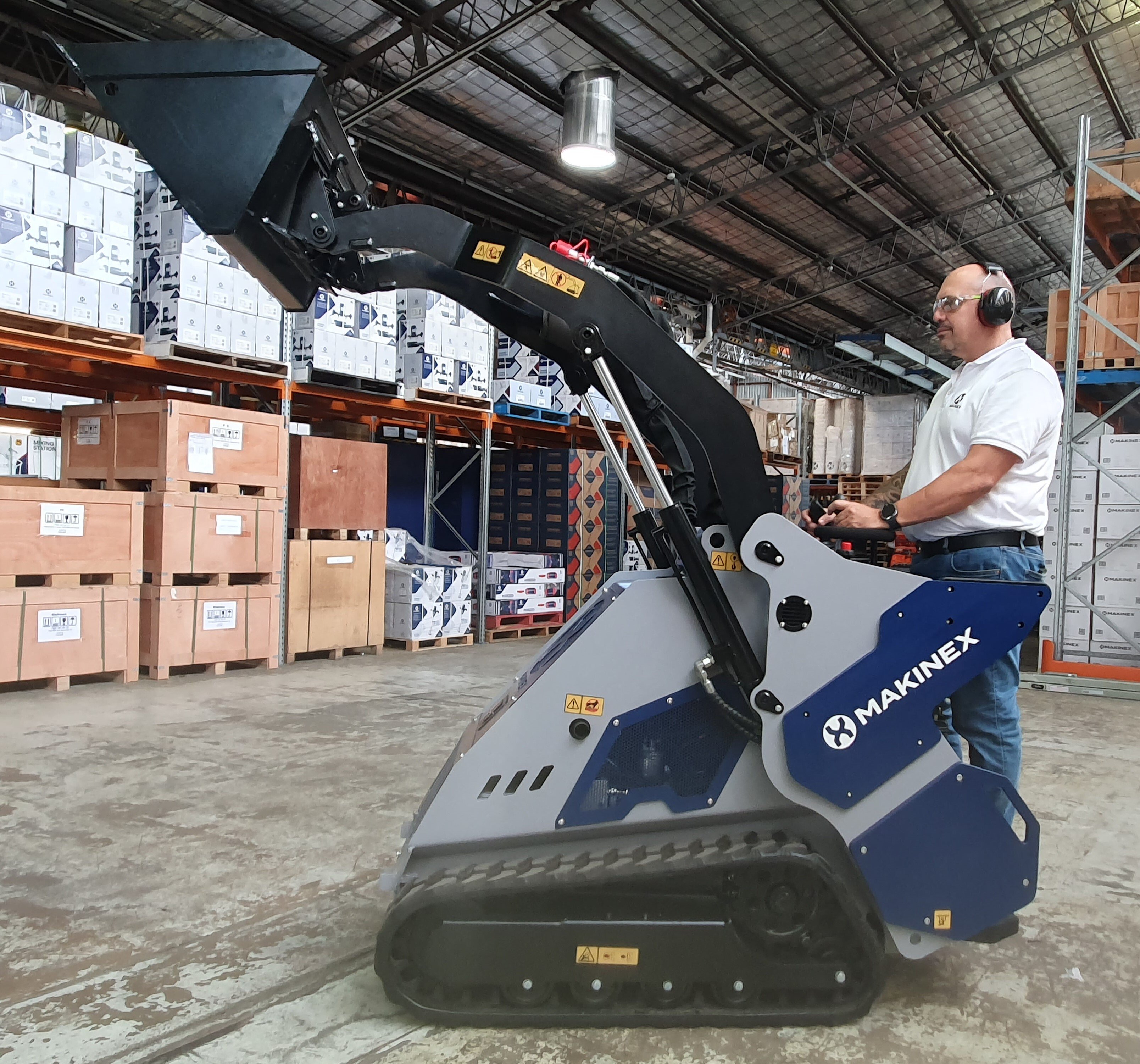

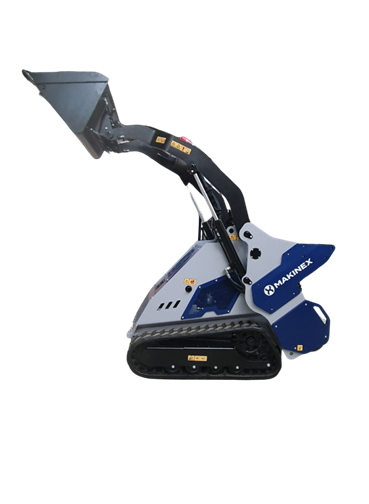

Mini Stand-On Skid Steer

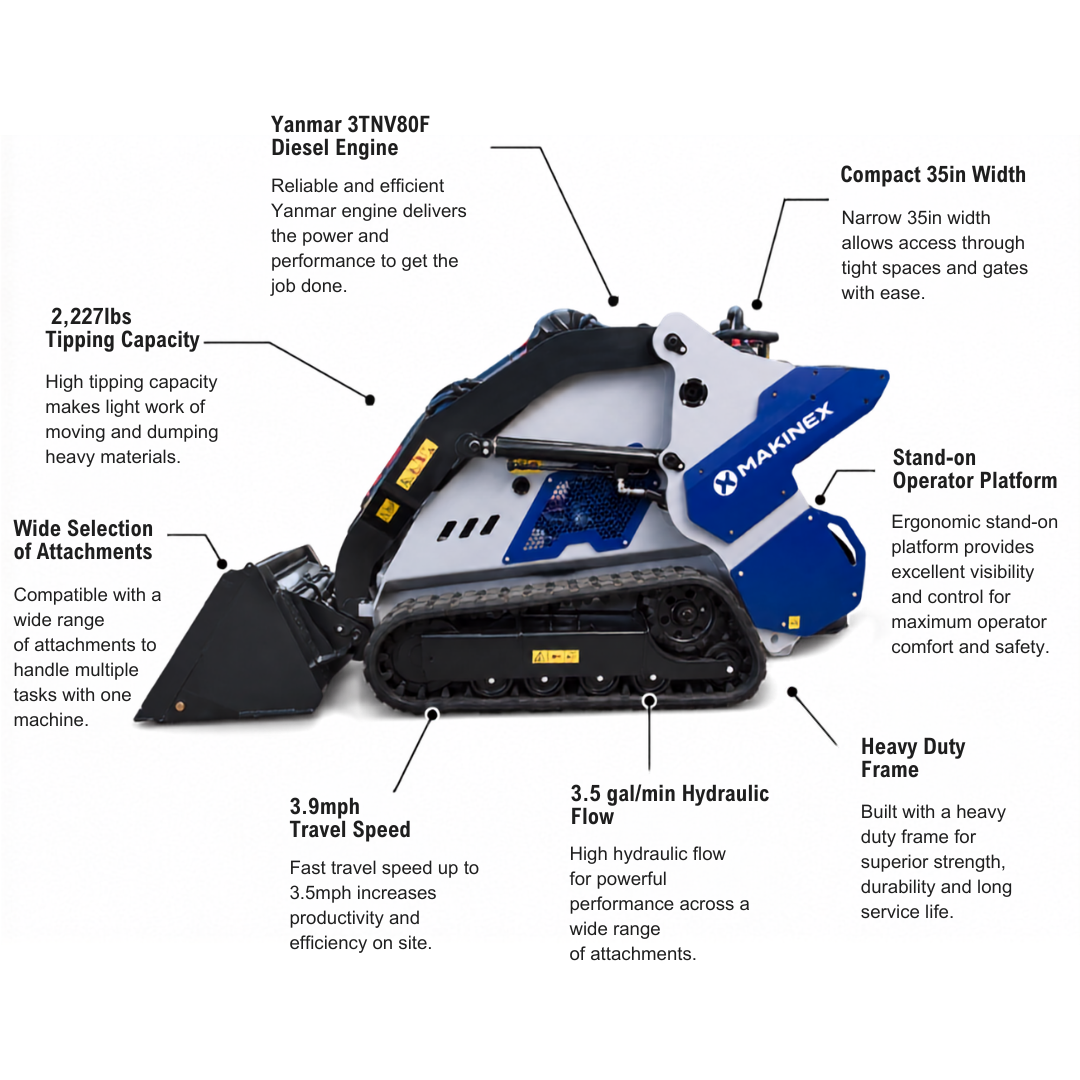

The Makinex 24hp Mini Stand-On Skid Steer delivers powerful performance in a compact design, making it ideal for tight job sites where maneuverability is key. With a width of just 35in, this versatile machine easily fits through narrow spaces while offering an impressive tipping capacity of 2,227lbs.

Brochure

Exploded Parts Diagram

Manual

Request a Demo

Know the Product

Check out product specs, videos, features and benefits below!

DIMENSIONS (STD)
Height to Bucket Hinge Pin, max	76 in
Operating Height, max std.bucket	106.9 in
Height	51.7 in
Length without Attachment	71.9 in
Length with Standard Bucket	98.2 in
Ground Clearance	5.7 in
Ground Contact Length	37.8 in
Width	35 in
POWER
Engine Yanmar 3TNV80F diesel	EU Stage V/ EPA Tier 5 Final
Number of cylinders	3
Displacement	1.267L
Bore	3.15 in
Stroke	3.31 in
Gross power rating (per SAE J1955)	17.8 kW
Rated engine speed	3000 rpm

PERFORMANCE
Ground drive speed, forward and reverse	3.9 mph
Ground pressure, 8 in (200 mm) tracks	0.35 bar
Angle of Departure	22°
Tipping capacity	2,227 lbs
Operating capacity (35% of tipping capacity)	780 lbs
Machine weight (no attachment, fluids full)	2,712 lbs
Auxiliary Hydraulic Flow	3.5 gal/min
Auxiliary Hydraulic Pressure	180 Bar
Battery 12 V; 60 Ah	475 cold cranking amps @ 0°F
Battery 12 V; 60 Ah	475 cold cranking amps @ 0°F
FLUID CAPACITIES
Fuel tank	9.0 gal
Fuel tank	9.0 gal
Engine oil, with filter	1.3 gal
Hydraulic System	11 gal
Hydraulic System	11 gal
